Single Phase

heim Pump output 600 l/h 132 lmp. gal./h. 158 U.S. gal./h.
Delivery head 1,50 m/wat.col. 4 ft. 11 in./wat.col.
Power consumption 10 Watt
Hose connection (suction side) Ø13mm (1/2")
Hose connection (pressure side) Ø13mm (1/2")
Dimensions: lenght x width x height 147 x 75 x 118 5.8 x 3 x 4.7 in.

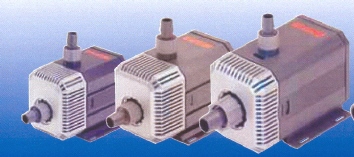

Model	Pump Output l/h	Delivery Head	Inlet Hose	Outlet Hose	Dimensions
Eheim 1046	300 l/h	1.2m	12 / 16	9/12	145x75x103mm

Model	Pump Output l/h	Delivery Head	Inlet Hose	Outlet Hose	Dimensions
Eheim 1048	600 l/h	1.5m	12 / 16	12/16	147x75x118mm

Model	Pump Output l/h	Delivery Head	Inlet Hose	Outlet Hose	Dimensions
Eheim 1048	600 l/h	1.5m	12 / 16	12/16	147x75x118mm

Model	Pump Output l/h	Delivery Head	Inlet Hose	Outlet Hose	Dimensions
Eheim 1048	600 l/h	1.5m	12 / 16	12/16	147x75x118mm

Model	Pump Output l/h	Delivery Head	Inlet Hose	Outlet Hose	Dimensions
Eheim 1048	600 l/h	1.5m	12 / 16	12/16	147x75x118mm

Swimmey pumps have been designed to offer maximum reliability for filtering and circulating water.

Large filter that can be inspected from a screw on cover.
2 piece, moveable discharge and suction connections.
Graphite mechaniical seal with ceramic counterface.
Plastic support base for greater pump stability and reduction in vibration.
Impeller and diffuser in lexan reinforced glass fiber resistant to abrasion from sand.

Dimensions (HxWxD) aprox mm : 280 x 180 x 565
Power : 0.37kW
Max Output : 210 llitres/h 46gallons/h
Max Head : 13m
Outlet mm : 50m

Litres/min	0	50	100	150	200
Head/m	13	11	9	5.5	0

Swimmey pumps have been designed to offer maximum reliability for filtering and circulating water.

Large filter that can be inspected from a screw on cover.
2 piece, moveable discharge and suction connections.
Graphite mechaniical seal with ceramic counterface.
Plastic support base for greater pump stability and reduction in vibration.
Impeller and diffuser in lexan reinforced glass fiber resistant to abrasion from sand.

Dimensions (HxWxD) aprox mm : 280 x 180 x 565
Power : 0.5kW
Max Output : 250 llitres/h 56gallons/h
Max Head : 15m
Outlet mm : 50m

Litres/min	0	50	100	150	200	250
Head/m	14.5	13.5	11	9	5	0

Swimmey pumps have been designed to offer maximum reliability for filtering and circulating water.

Large filter that can be inspected from a screw on cover.
2 piece, moveable discharge and suction connections.
Graphite mechaniical seal with ceramic counterface.
Plastic support base for greater pump stability and reduction in vibration.
Impeller and diffuser in lexan reinforced glass fiber resistant to abrasion from sand.

Dimensions (HxWxD) aprox mm : 280 x 180 x 590
Power : 0.75kW
Max Output : 310 llitres/h 69gallons/h
Max Head : 20m
Outlet mm : 50m

Litres/min	0	50	100	150	200	250	330
Head/m	19.5	17.5	16	13	10	7	2

Swimmey pumps have been designed to offer maximum reliability for filtering and circulating water.

Large filter that can be inspected from a screw on cover.
2 piece, moveable discharge and suction connections.
Graphite mechaniical seal with ceramic counterface.
Plastic support base for greater pump stability and reduction in vibration.
Impeller and diffuser in lexan reinforced glass fiber resistant to abrasion from sand.

Dimensions (HxWxD) aprox mm : 280 x 180 x 610
Power : 1kW
Max Output : 400 llitres/h 89gallons/h
Max Head : 15m
Outlet mm : 50m

Litres/min	0	100	200	300	400
Head/m	14.5	13	10	5.5	0

Swimmey pumps have been designed to offer maximum reliability for filtering and circulating water.

Large filter that can be inspected from a screw on cover.
2 piece, moveable discharge and suction connections.
Graphite mechaniical seal with ceramic counterface.
Plastic support base for greater pump stability and reduction in vibration.
Impeller and diffuser in lexan reinforced glass fiber resistant to abrasion from sand.

Dimensions (HxWxD) aprox mm : 280 x 180 x 635
Power : 1.13kW
Max Output : 480 llitres/h 107gallons/h
Max Head : 17m
Outlet mm : 50m

Litres/min	0	100	200	300	400	470
Head/m	17	16	13	10	5	0

Swimmey pumps have been designed to offer maximum reliability for filtering and circulating water.

Large filter that can be inspected from a screw on cover.
2 piece, moveable discharge and suction connections.
Graphite mechaniical seal with ceramic counterface.
Plastic support base for greater pump stability and reduction in vibration.
Impeller and diffuser in lexan reinforced glass fiber resistant to abrasion from sand.

Dimensions (HxWxD) aprox mm : 280 x 180 x 635
Power : 1.5kW
Max Output : 550 llitres/h 122gallons/h
Max Head : 20m
Outlet mm : 50m

Litres/min	0	100	200	300	400	500	550
Head/m	21.5	19	16	12.5	8	3	0
