Mathews Self Install Kits

Mathews Self Install Kits

Trade discounts available for; Drillers, Installers, and resellers, to verify this please send copy of business letterhead, card, etc through e-mail or fax.
E-mail address, sales@wjml.co.uk
Fax, 01392 413274

Trade Discount, Less 25%
Multiples of 5 and over, Less 40%

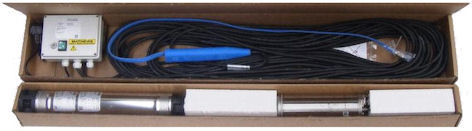

All our kits Include Pump, Motor, Dry Run Protector, 60m of fitted cable and 13amp plug top.

Ready to DROP IN and PLUG IN.



As water prices have increased more and more customers are installing their own water supply. This can be done with a Mathews Self Install Borehole Kit.

These kits come complete ready to plug in to a normal 13amp socket.

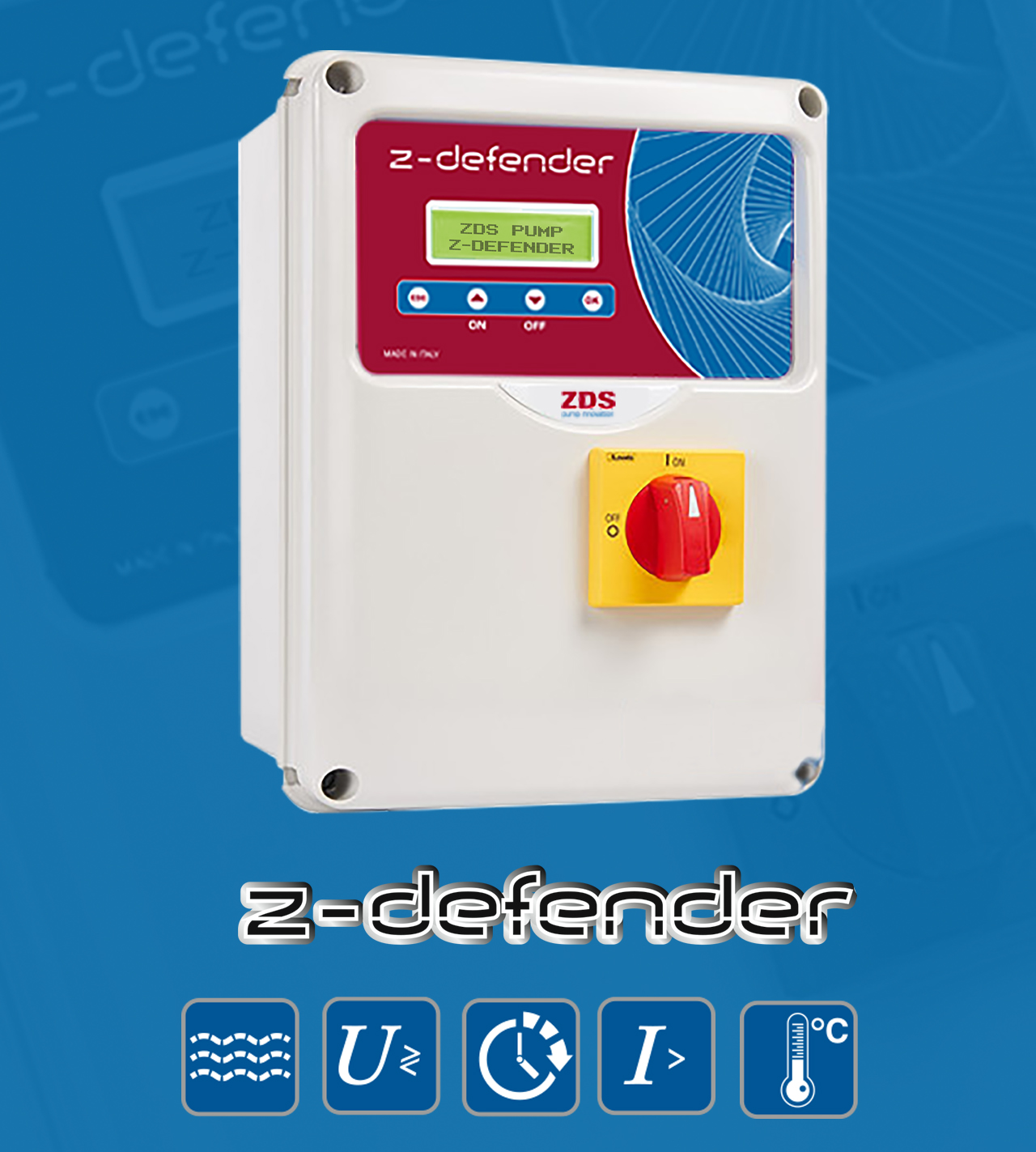

Unique to Mathews - Dry Run Protection
When the water recedes there is a risk of the pump running dry and failing. This can result in considerable repair costs and a loss of water supply. A very serious problem. We have eliminated this risk with our kits by including Dry Run Protection.

Borehole Self Install Kit.  P.1-12. H3F.60.DRP

Borehole Self Install Kit. P.1-12. H3F.60.DRP


Price: 972.00 (Excluding VAT at 20%)

Trade Discount. Less 25%
Multiples of 5 and over. Less 40%


Pre packaged Self Install Kits with all you need for your borehole. Includes a unique Dry Run Protector to turn the pump off, when the yield recedes the pump will immediately stop,saving any damage incurring to the pump the pump will restart agian after a series of timed intervals starting at 20 seconds and reaching out to 6 minutes providing the yield has recovered in the bolehole. Fitted with the world renown Franklin Motor which is connected to a control box with overload protection. Fitted with a 13 Amp Plug Top, ready to go.

Litres / min0510152025
Head / m7.576.55.543



Dry Run Protection
Motor - 0.37kW 0.5HP,220-240V, 1PH, 50Hz,
60 mtrs cable
Control Box with Overload
13 amp plug top.




If fitted into a 4" Borehole you will need to use a RSD Offset Bend Kit. CLICK HERE

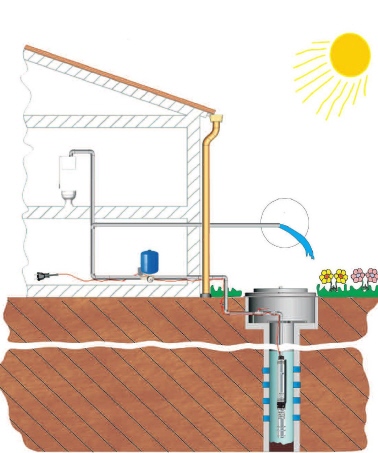

You will require a KPC18 Pressure Control Kit to prevent the pump from running continously. Please click on the link to the 'Related Product'.







Related products:
1. KPC18 Pressure Control Kit

Borehole Self Install Kit.  P.1-18. H3F 60.DRP

Borehole Self Install Kit. P.1-18. H3F 60.DRP


Price: 1,035.00 (Excluding VAT at 20%)

Trade Discount. Less 25%
Multiples of 5 and over. Less 40%


Pre packaged Self Install Kits with all you need for your borehole. Includes a unique Dry Run Protector to turn the pump off, when the yield recedes the pump will immediately stop,saving any damage incurring to the pump the pump will restart agian after a series of timed intervals starting at 20 seconds and reaching out to 6 minutes providing the yield has recovered in the bolehole. Fitted with the world renown Franklin Motor which is connected to a control box with overload protection. Fitted with a 13 Amp Plug Top, ready to go.




Litres / min0510152025
Head / m11.7.11108.564



Dry Run Protection
Motor - 0.55kW 0.75HP,220-240V, 1PH, 50Hz,
60 mtrs cable
13 amp plug top.




If fitted into a 4" Borehole you will need to use a RSD Offset Bend Kit. CLICK HERE


You will require a KPC18 Pressure Control Kit to prevent the pump from running continously. Please click on the link to the 'Related Product'.





Related products:
1. KPC18 Pressure Control Kit

Borehole Self Install Kit.  P.1-25. H3F.60.DRP

Borehole Self Install Kit. P.1-25. H3F.60.DRP


Price: 1,113.00 (Excluding VAT at 20%)

Trade Discount. Less 25%
Multiples of 5 and over. Less 40%



Pre packaged Self Install Kits with all you need for your borehole. Includes a unique Dry Run Protector to turn the pump off, when the yield recedes the pump will immediately stop,saving any damage incurring to the pump the pump will restart agian after a series of timed intervals starting at 20 seconds and reaching out to 6 minutes providing the yield has recovered in the bolehole. Fitted with the world renown Franklin Motor which is connected to a control box with overload protection. Fitted with a 13 Amp Plug Top, ready to go.



Litres / min610152025
Head / m1501401209055



Dry Run Protection
Motor - 0.37kW 0.5HP,220-240V, 1PH, 50Hz,
60 mtrs cable
Control Box with Overload
13 amp plug top.



If fitted into a 4" Borehole you will need to use a RSD Offset Bend Kit. CLICK HERE.



You will require a KPC18 Pressure Control Kit to prevent the pump from running continously. Please click on the link to the 'Related Product'.








Related products:
1. KPC18 Pressure Control Kit

Borehole Self Install Kit.  P.2-12. H3F.60.DRP

Borehole Self Install Kit. P.2-12. H3F.60.DRP


Price: 992.00 (Excluding VAT at 20%)

Trade Discount. Less 25%
Multiples of 5 and over. Less 40%


Pre packaged Self Install Kits with all you need for your borehole. Includes a unique Dry Run Protector to turn the pump off, when the yield recedes the pump will immediately stop,saving any damage incurring to the pump the pump will restart agian after a series of timed intervals starting at 20 seconds and reaching out to 6 minutes providing the yield has recovered in the bolehole. Fitted with the world renown Franklin Motor which is connected to a control box with overload protection. Fitted with a 13 Amp Plug Top, ready to go.



Litres / min02025303540
Head / m757068646054




Dry Run Protection
Motor - 0.55kW 1.50HP,220-240V, 1PH, 50Hz,
60 mtrs cable
13 amp plug top.




If fitted into a 4" Borehole you will need to use a RSD Offset Bend Kit. CLICK HERE

You will require a KPC18 Pressure Control Kit to prevent the pump from running continously. Please click on the link to the 'Related Product'.



Related products:
1. KPC18 Pressure Control Kit

Borehole Self Install Kit.  P.2-16. H3F.60.DRP

Borehole Self Install Kit. P.2-16. H3F.60.DRP


Price: 1,045.00 (Excluding VAT at 20%)

Trade Discount. Less 25%
Multiples of 5 and over. Less 40%


Pre packaged Self Install Kits with all you need for your borehole. Includes a unique Dry Run Protector to turn the pump off, when the yield recedes the pump will immediately stop,saving any damage incurring to the pump the pump will restart agian after a series of timed intervals starting at 20 seconds and reaching out to 6 minutes providing the yield has recovered in the bolehole. Fitted with the world renown Franklin Motor which is connected to a control box with overload protection. Fitted with a 13 Amp Plug Top, ready to go.



Litres / min02025303540
Head / m1009590858070




Dry Run Protection
Motor - 0. 75kW 1.00 HP,220-240V, 1PH, 50Hz
60 mtrs cable
13 amp plug top.


If fitted into a 4" Borehole you will need to use a RSD Offset Bend Kit. CLICK HERE

You will require a KPC18 Pressure Control Kit to prevent the pump from running continously. Please click on the link to the 'Related Product'.



Related products:
1. KPC18 Pressure Control Kit

Borehole Self Install Kit.  P.2-24. H3F.60.DRP

Borehole Self Install Kit. P.2-24. H3F.60.DRP


Price: 1,254.00 (Excluding VAT at 20%)

Trade Discount. Less 25%
Multiples of 5 and over. Less 40%


Pre packaged Self Install Kits with all you need for your borehole. Includes a unique Dry Run Protector to turn the pump off, when the yield recedes the pump will immediately stop,saving any damage incurring to the pump the pump will restart agian after a series of timed intervals starting at 20 seconds and reaching out to 6 minutes providing the yield has recovered in the bolehole. Fitted with the world renown Franklin Motor which is connected to a control box with overload protection. Fitted with a 13 Amp Plug Top, ready to go.



Litres / min02025303540
Head / m153142135128119107



Dry Run Protection
Motor - 1.1kW 1.50HP,220-240V, 1PH, 50Hz,
60 mtrs cable
13 amp plug top.


If fitted into a 4" Borehole you will need to use a RSD Offset Bend Kit. CLICK HERE

You will require a KPC18 Pressure Control Kit to prevent the pump from running continously. Please click on the link to the 'Related Product'.



Related products:
1. KPC18 Pressure Control Kit

Borehole Self Install Kit.  P.3-13. H3F 60.DRP

Borehole Self Install Kit. P.3-13. H3F 60.DRP


Price: 1,040.00 (Excluding VAT at 20%)

Trade Discount. Less 25%
Multiples of 5 and over. Less 40%


Pre packaged Self Install Kits with all you need for your borehole. Includes a unique Dry Run Protector to turn the pump off, when the yield recedes the pump will immediately stop,saving any damage incurring to the pump the pump will restart agian after a series of timed intervals starting at 20 seconds and reaching out to 6 minutes providing the yield has recovered in the bolehole. Fitted with the world renown Franklin Motor which is connected to a control box with overload protection. Fitted with a 13 Amp Plug Top, ready to go.


Borehole Self Install Kit.  P.3-19. H3F.60.DRP

Borehole Self Install Kit. P.3-19. H3F.60.DRP


Price: 1,243.00 (Excluding VAT at 20%)

Trade Discount. Less 25%
Multiples of 5 and over. Less 40%


Pre packaged Self Install Kits with all you need for your borehole. Includes a unique Dry Run Protector to turn the pump off, when the yield recedes the pump will immediately stop,saving any damage incurring to the pump the pump will restart agian after a series of timed intervals starting at 20 seconds and reaching out to 6 minutes providing the yield has recovered in the bolehole. Fitted with the world renown Franklin Motor which is connected to a control box with overload protection. Fitted with a 13 Amp Plug Top, ready to go.



Litres / min010203040506070
Head / m1110.5109.38.5764



Dry Run Protection
Motor - 1.1kW 1.50HP,220-240V, 1PH, 50Hz,
60 mtrs cable
13 amp plug top.


If fitted into a 4" Borehole you will need to use a RSD Offset Bend Kit. CLICK HERE


You will require a KPC18 Pressure Control Kit to prevent the pump from running continously. Please click on the link to the 'Related Product'.




Related products:
1. KPC18 Pressure Control Kit

Borehole Self Install Kit.  X.3-25. H3F.60.DRP

Borehole Self Install Kit. X.3-25. H3F.60.DRP


Price: 1,473.00 (Excluding VAT at 20%)

Trade Discount. Less 25%
Multiples of 5 and over. Less 40%


Pre packaged Self Install Kits with all you need for your borehole. Includes a unique Dry Run Protector to turn the pump off, when the yield recedes the pump will immediately stop,saving any damage incurring to the pump the pump will restart agian after a series of timed intervals starting at 20 seconds and reaching out to 6 minutes providing the yield has recovered in the bolehole. Fitted with the world renown Franklin Motor which is connected to a control box with overload protection. Fitted with a 13 Amp Plug Top, ready to go.



Litres / min10203040506070
Head / m1351301201101008055



Related products:
1. KPC18 Pressure Control Kit
